Description

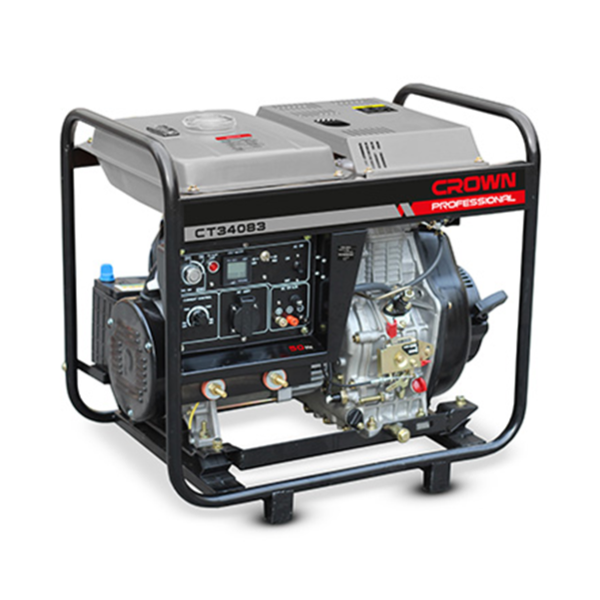

Description: The Crown CT34083 Diesel Welding Generator is a versatile machine that combines power generation and welding capabilities. Equipped with a robust diesel engine, it delivers consistent performance for both electricity generation and welding tasks, making it ideal for maintenance and mobile welding applications.

Key Features:

1. Dual-functionality: Serves as both a generator and a welding machine
2. Maximum output of 2.0 kVA; rated output of 1.8 kVA
3. Welding current range: 50–180 A; rated welding current: 160 A
4. Direct injection, single-cylinder, vertical, 4-stroke diesel engine
5. Electric start for easy operation
6. Fuel tank capacity of 12.5 liters for extended use

Specifications:

1. Dimensions: 69 x 49 x 73 cm
2. Weight: 123 kg
3. Material: High-quality components for durability
4. Power Requirements: Diesel fuel
5. Other Specs:
6. Engine displacement: 456 cm³
7. Rated speed: 3000 rpm
8. Noise level: 74–77 dB(A)
9. Rated voltage: 230 V
10. Rated current: 7.8 A
11. No-load welding voltage: 55–65 V
12. Continuous welding load rate: 40%
