Technical Parameter

Temperature range: -20°C~ 550°C (4°F~1022°F)

Precision: ±2°C/±2% whichever is greater

Sensor: Uncooled focal plane

Mode High gain: -15°C~150°C, low gain: 150°C~550°C

Corresponding time of temperature measurement: ≤500ms

Pixels: 256*192 (49152)

Pixel size: 12um

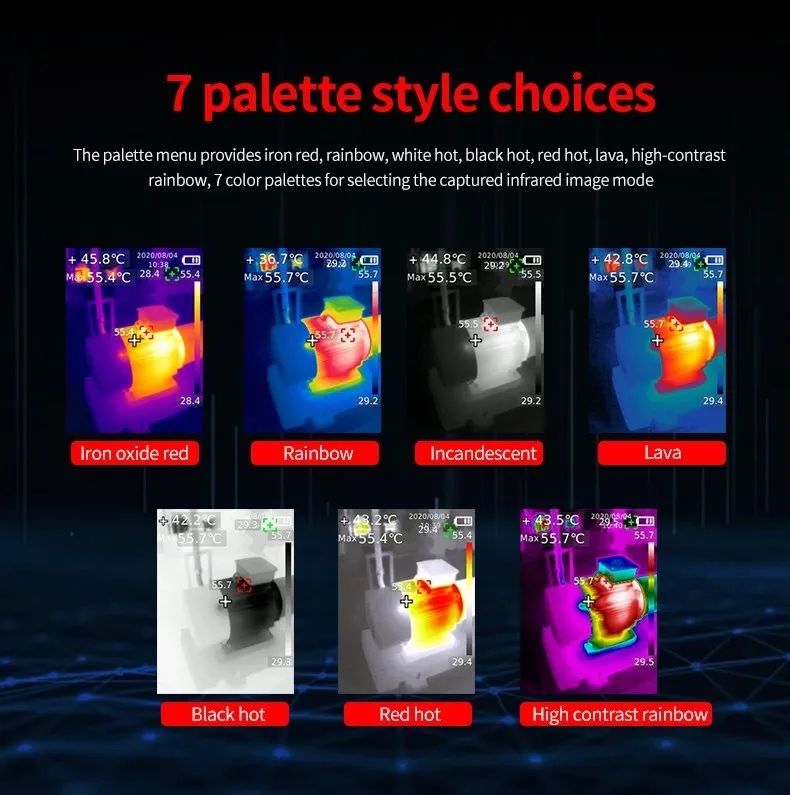

Swatches: White hot, black hot,iron red, lava, rainbow, high contrast rainbow, red hot

IR spectrum bandwidth: 8~14um

Field of view: 56° (H) *42.2° (V)

IFOV: 3.8mrad

Sensitivity: <60mK

Frame rate: <25Hz

Temperature measurement display: Central point temperature measurement, high temperature tracking and key area temperature measurement (ROI), the default is high temperature tracking

Temperature measurement point: In addition to the center point, 3 temperature measurement points can be customized

Picture mode: IR, fusion, picture in picture, visible light

Visible light resolution: 640x 480

Mixed settings: 0% (full visible light), 25%,50%, 75%, 100%)

Format: BMP

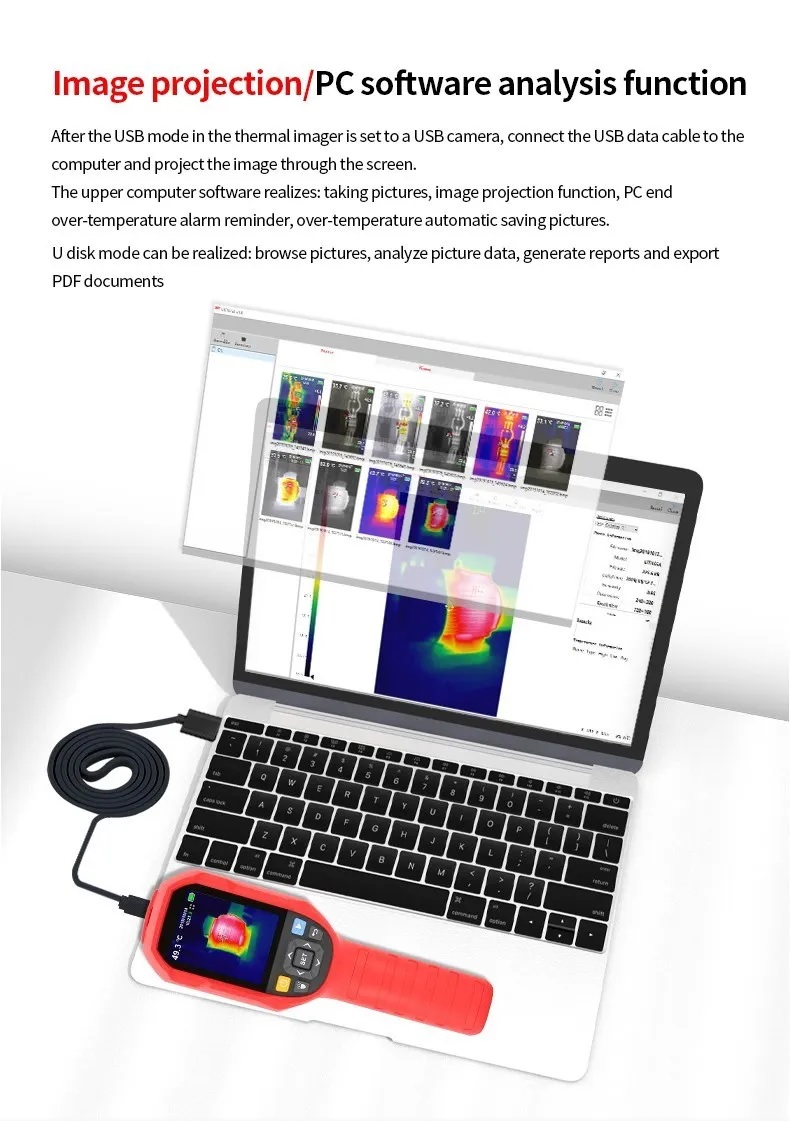

PC analysis software:Yes

Real-time transmission: PC software real-time projection

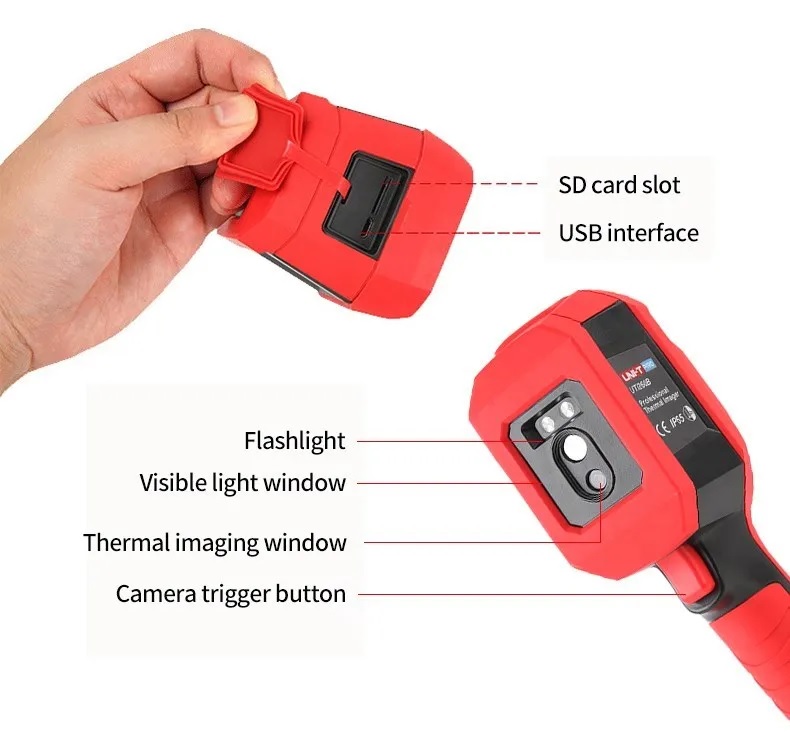

Data communication: Type-C USB

IP rating: IP65

Drop test: 2m

Display screen: 2.8 "TFT LCD

Display resolution: 320* 240

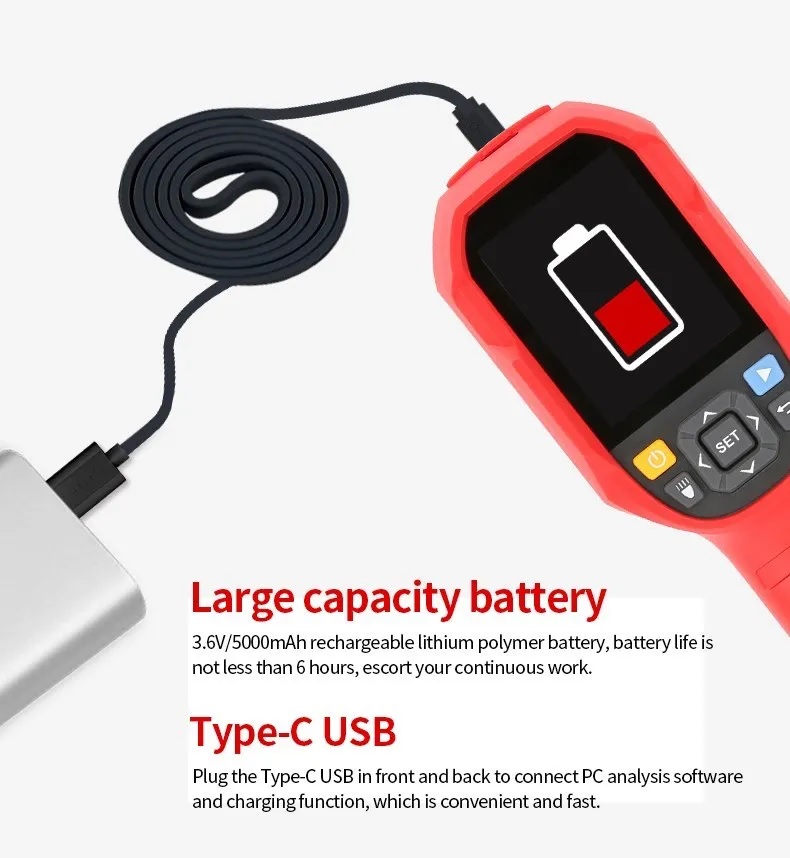

Battery: Li-ion 3.6V 5000mAh 26650 single cell

Automatic shut-down: Optional (5min, 10min, 30min,) The default 30min automatic shutdown

Usage time: Not less than 6 hours

Charging time: No more than 5 hours

Charging voltage/current: 5V/2A

Storage: Micro SD card

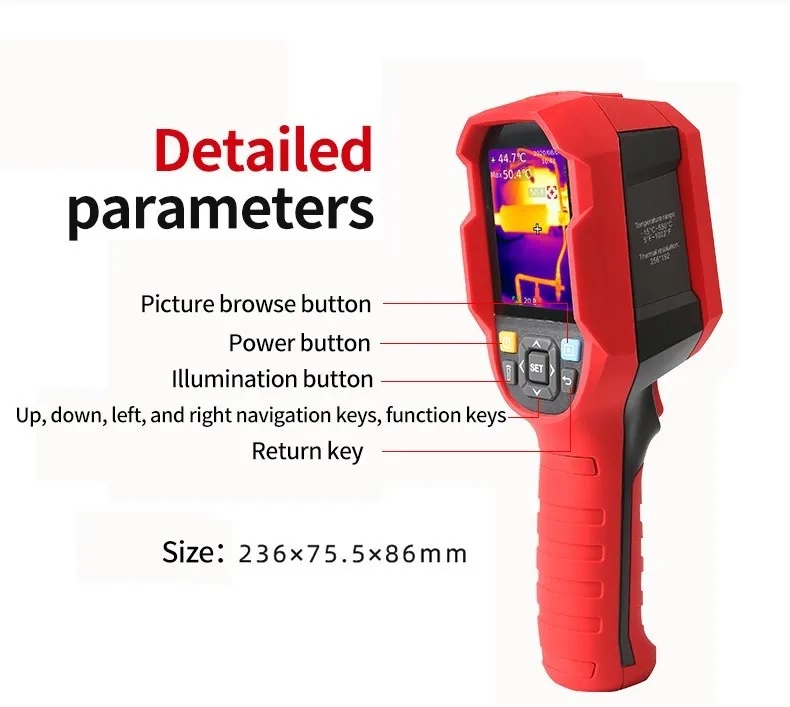

Product Size: 236*75.5*86mm

Accessories: Manual, Type-C USB cable, 16G TF car
