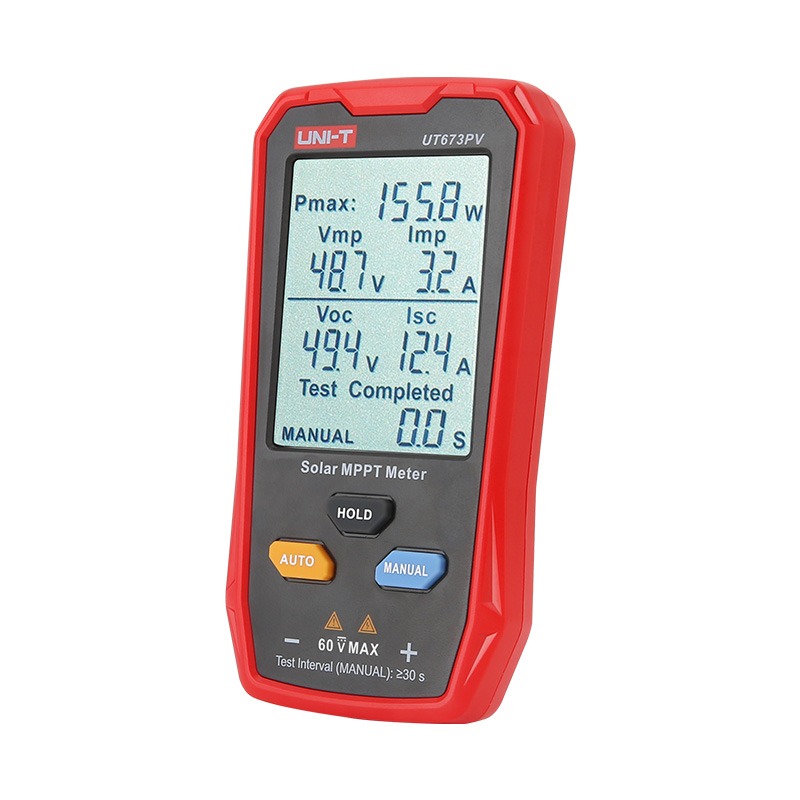

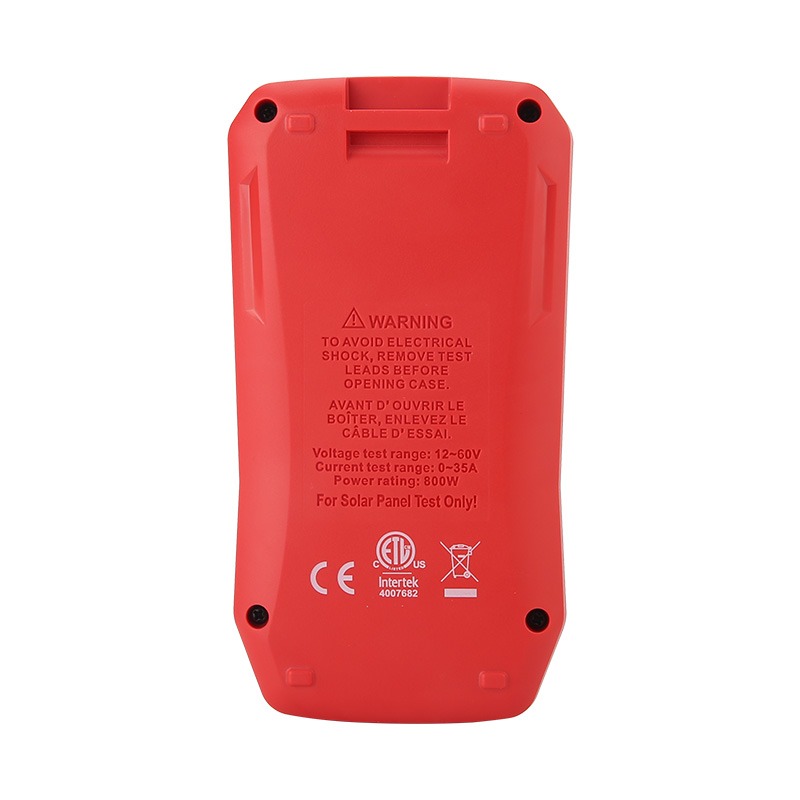

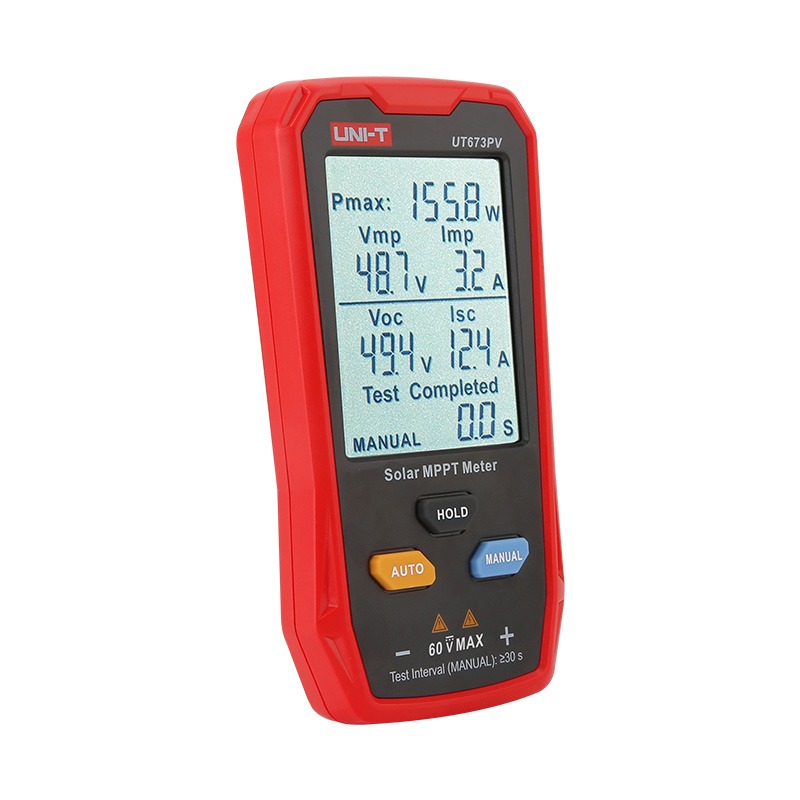

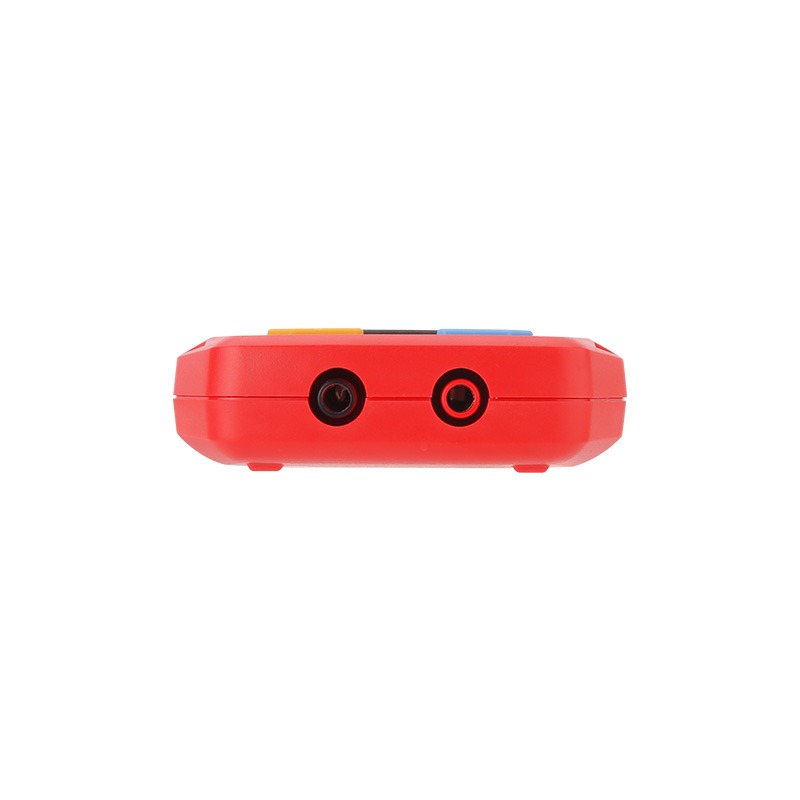

UNI-T UT673PV Solar MPPT Meter | 5-800W Pmax | 12-60V Voc/Vmp | 0-35A Isc/Imp | MC4 Test Lead | CE, cETLus, RoHS | Model: UT673PV
A professional solar MPPT meter for testing solar panels and identifying abnormalities. Measures maximum power (Pmax), peak power voltage (Vmp), peak power current (Imp), open circuit voltage (Voc), and short circuit current (Isc). Powered directly by the solar panel — no batteries needed.
Brand: UNI-T
Model: UT673PV
Type: Solar MPPT Meter
Max Power Measurement (Pmax): 5 – 800W
Max Power Current (Imp): 0 – 35A DC
Max Power Voltage (Vmp): 12 – 60V DC
Open Circuit Voltage (Voc): 12 – 60V DC
Short Circuit Current (Isc): 0 – 35A DC
Display: Large LCD (52 × 66mm)

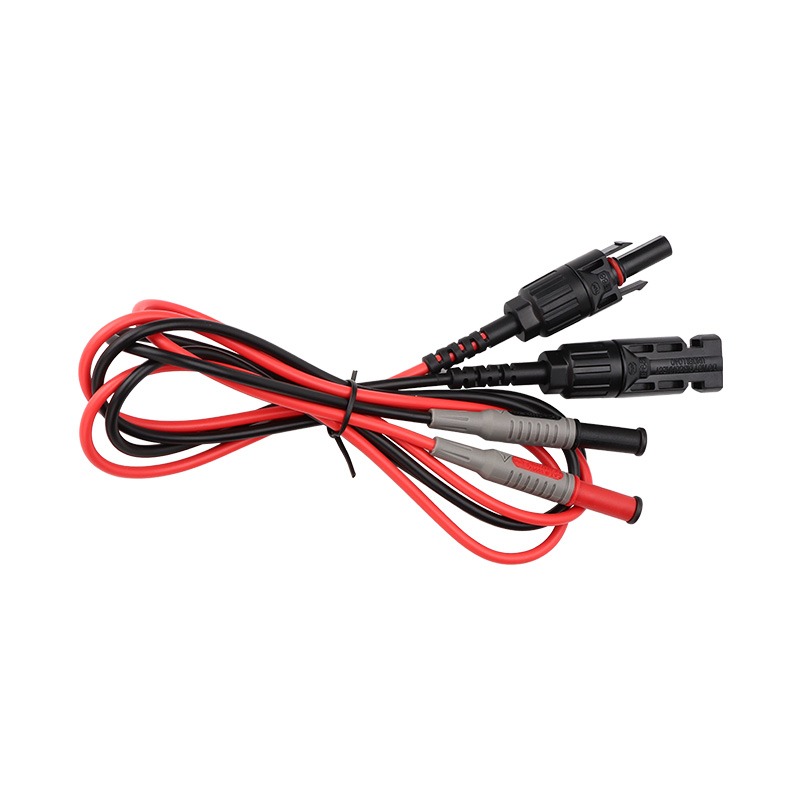

Test Lead: MC4 (included)
Power Supply: Powered by solar panel (no batteries needed)
Overvoltage Category: CAT 0 60V
Certifications: CE, cETLus, RoHS
Automatic MPPT Test – manual/auto test mode available
No Batteries Required – powered directly from the solar panel

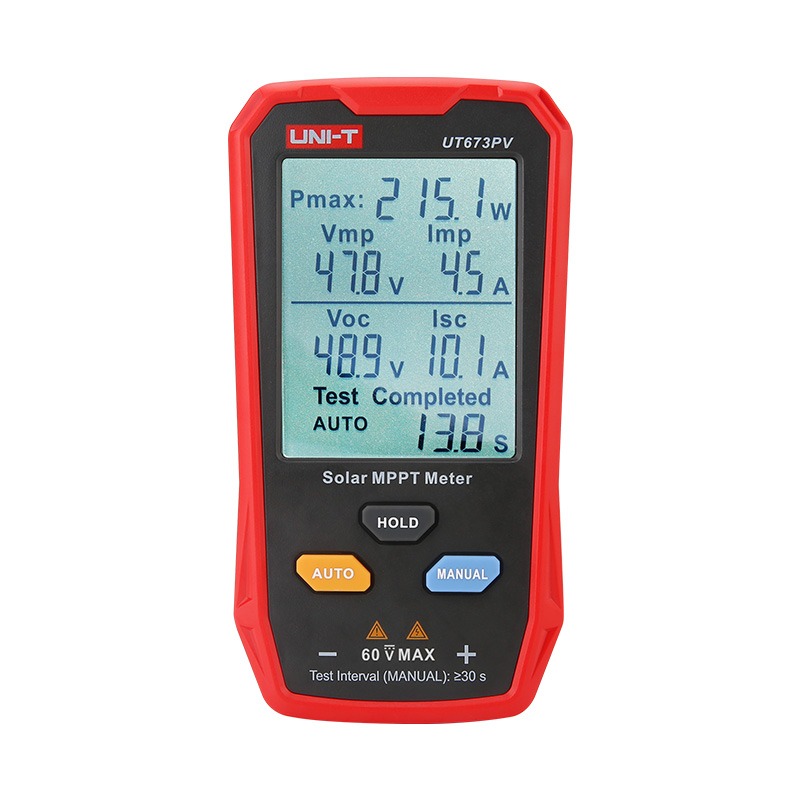

Large LCD Display (52×66mm) – all results displayed simultaneously
MC4 Test Lead Included – ready for solar panel connection
Multiple Protections – reverse polarity, over voltage, over current, over temperature, over power
Data Hold Function – freeze readings on display
Portable Design – easy to carry for field use
CE, cETLus, RoHS Certified – meets international safety standards
| Parameter | Abbreviation | Range | Accuracy |
| Max Power | Pmax | 5-800W | ±(1.0%+10) |
| Peak Power Current | Imp | 0-35A | ±(1.5%+5) |
| Peak Power Voltage | Vmp | 12-60V | ±(1.5%+5) |
| Open Circuit Voltage | Voc | 12-60V | ±(1.5%+5) |
| Short Circuit Current | Isc | 0-35A | ±(1.5%+5) |
Solar MPPT Meter, PV Tester, Solar Panel Tester, Pmax Tester, UNI-T UT673PV, MPPT Tracker, Solar Maintenance Tool, Photovoltaic Tester, Solar Installer Tool, MC4 Solar Tester, Renewable Energy Tool
#Tags
#UNI_T #SolarMPPTMeter #PVTester #SolarPanelTester #SolarMaintenance #RenewableEnergy #UT673PV #MPPT #SolarInstaller #PhotovoltaicTester #MC4 #SolarTool
